Hotel Room Automation Solutions

Do Not Disturb (DND) Solutions

Fox Domotics have electronic Do not Disturb (DND) solutions for the hotels. Gone are the days to hang DND printed cards at the door. Today with our electronic DND corridor panel along with activation panel you can give best guest experience and convenient to use DND solutions for your Guest. No need for printing the DND cards which saves the nature thus ecofriendly solution.

In corridor panel we have 3 different types of touch switches as given below

Vertical corridor panel: This panel front glass size is 90 X 225 mm, back is small in size and fits into 2 module metal conceal box. It comes with custom Hotel Logo and room number on top. We can put any logo and room number printed on the glass. It’s illuminated when guest is inside the room, giving rich look and occupancy indication of the room. There is Bell icon which when touch rings the bell. On bottom side we have 3 indications for DO not Disturb (DND), Make My Room (MMR) and Laundry. When DND is activated the bell does not ring which is the main function of this panel.

Horizontal corridor Panel: This panel front glass size is 225 X 90 mm, back is small in size and fits into 2 module metal conceal box. It comes with custom Hotel Logo and Room Number on left half of the panel. We can put any logo and room number printed on the glass. It’s illuminated when guest is inside the room, giving rich look and occupancy indication of the room. There is Bell icon which when touch rings the bell. On right side of the panel we have 3 indications for DO not Disturb (DND), Make My Room (MMR) and Laundry. When DND is activated the bell does not ring which is the main function of this panel.

Small Corridor Panel: This is small 90X90 mm size corridor panel. It has bell touch button on top. On bottom side we have 3 indications for DO not Disturb (DND), Make My Room (MMR) and Laundry. When DND is activated the bell does not ring which is the main function of this panel. It does not have hotel logo and room number on it. Its low cost and feature rich system which enhance the guest experience.

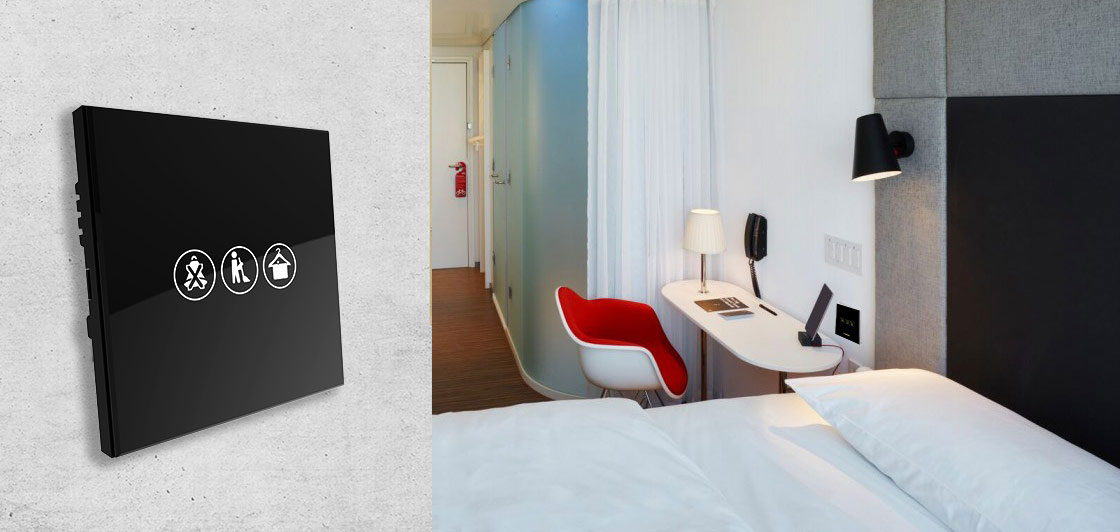

Activation panel is installed inside the room, from where the Guest can activate DND, MMR or Laundry indication by touch. It is 90 X 90 mm size and fits into 2 module metal conceal box.

The corridor panel and activation panel is connected through a CAT6 wire. For more details please look the technical data sheet.


RFID Power Saving Solutions

Power saving is the most important need of any hotel. When the guest goes out all the devices must switch off and should consume zero power. With our Power saver key card panel this is possible very easily.

We have different variant of Key Card Switch and can be customized as client requirement.

We have RFID based Power saving key card system which detects RFID card and activate the Power in the room. Normal card or visiting card or any plastic cards cannot activate the power unless the RFID card is inserted. This gives best solution to save energy in hotel industries.

More advance key card system which can read the RFID card and thus give more features to hotel client. This system can differentiate between Guest and staff.

If staff card is entered only the lights would be activated AC and Socket point of TV and other sockets are switched off. If guest card is inserted complete power is gained including light, AC and All sockets. This gives further power saving as room cleaning staff misuse the rooms while doing cleaning jobs.

We also manufacture normal key card system which is activated by any normal card or visiting cards. These are low cost key card panel.

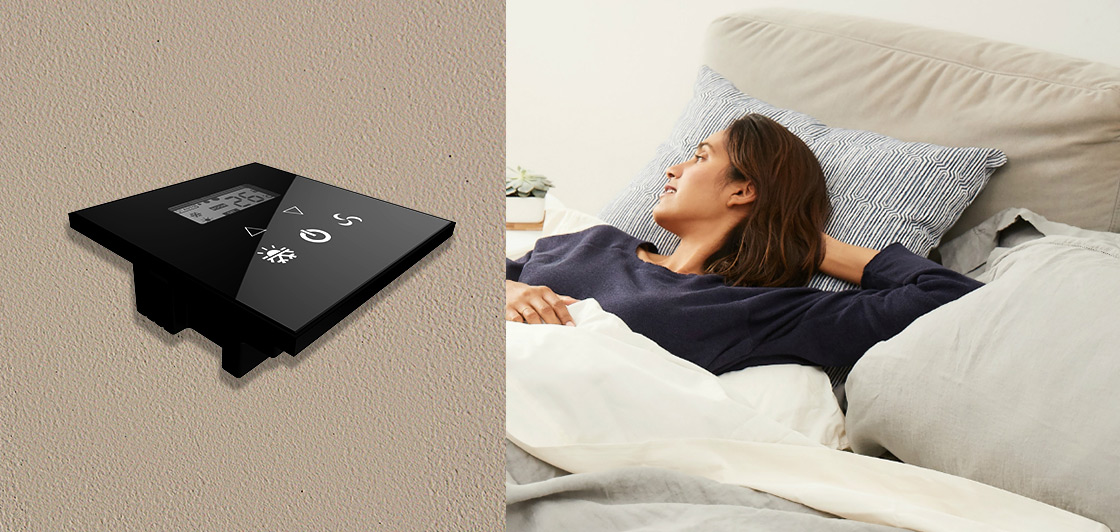

HVAC Control Solutions

All hotels have HVAC cooling system installed in each room. For the guest to control the temperature of the room needs HVAC control panel in the room. Out thermostat panel is full feature touch panel based system. It has a display which shows current room temperature, set temperature, fan seed and cooling or heating mood.

It is 90 X 90 mm touch panel which fits into 2 module concealed metal box. For more details please look the technical data sheet.

Light Control Solutions

Any hotel wants to give best guest experience. In order to make room more elegant the lighting system plays very important part, while the guest enters the room. As guest inserts the RFID card into the key card the welcome scene is turned on by the light control system along with the AC. This gives guest the best ambiance of the room which makes him more comfortable and pleasurable.

We are manufacturing touch switches for light control. We have variety of different range, sizes and possible combination of Light ON/OFF, Light Dimmer and Fan Dimmer. Hotel can select any combination as per their requirement which full fill their lighting needs.

All touch switches are Stand alone and independent system. For More details please see under product section, Touch switches part. You can select any model which full fill your requirement.

The button icon and name can be customized as per requirement. We can put your hotel logo on each touch switches.

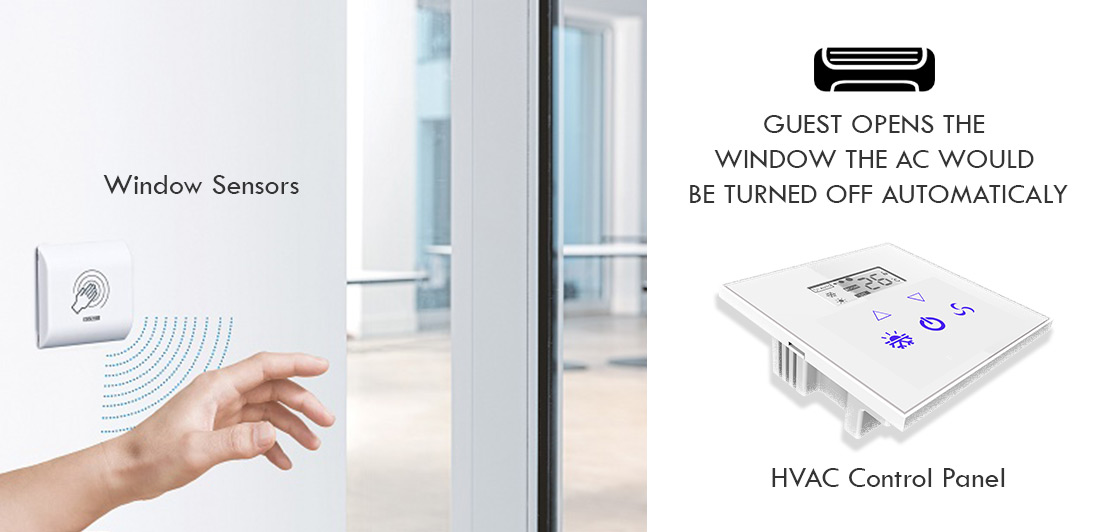

Window Sensor for Power saving Solutions

Window sensor can be installed on the window which detects the position of the window if it is open or close. If guest opens the window the AC would be turned off and as soon as the window is closed the AC turned on automatically. This gives additional benefit of power saving when the guest is actually at the window and takes the natural air out side.

Window sensors are connected through CAT6 wire to the HVAC control panel.
