Fox Domotics Hotel Keycard Holders
Fox Domotics’ Hotel Keycard Holders
A hotel keycard holder is an essential energy-saving device designed for modern hospitality environments. When a guest inserts their room keycard, the system automatically powers the room, activating lights, air conditioning, and other electrical services. Removing the card disconnects non-essential loads, ensuring energy is not wasted when the room is unoccupied.
Key Features
- Energy efficiency – reduces power consumption by cutting off electricity when the guest leaves the room
- Seamless operation – automatically activates room circuits with a simple card insertion
- LED indicator – shows card status or power activation
- Compact and elegant design – crystal glass or matte finish to match hotel interiors
- Durable and reliable – built to withstand frequent guest use
Applications
- Hotels, resorts, and serviced apartments
- Guest houses or homestays requiring energy management
- Any hospitality project seeking cost reduction through smart automation

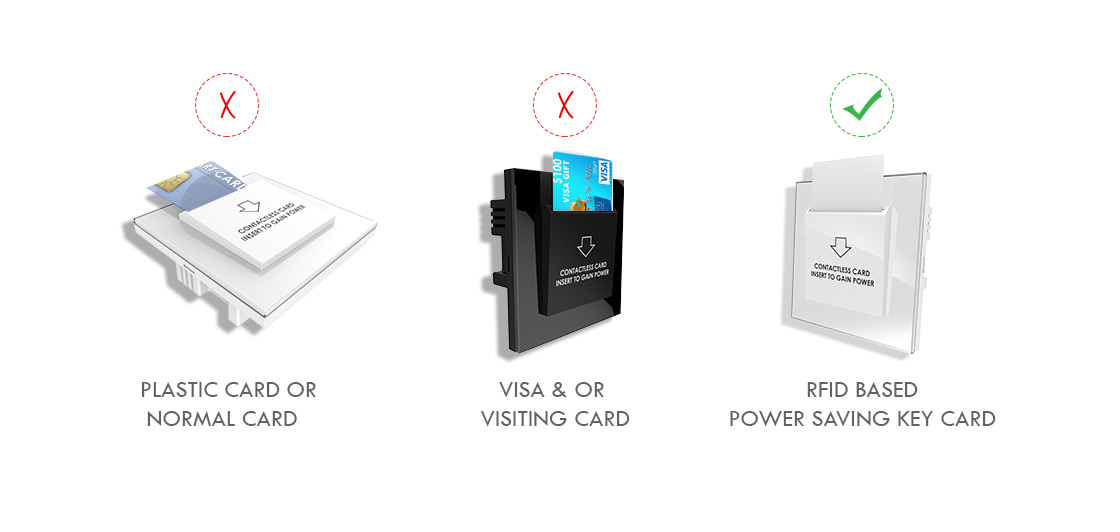

Fox Domotics offers three types of hotel keycard holders to suit different levels of security, compatibility, and cost-efficiency. All our models are designed to help hotels save energy by cutting off power when guests leave the room.
1.Any Keycard Holder
- Accepts any card (bank card, ID, business card, etc.).
- Mechanical or relay-based design.
- Automatically turns power ON when any card is inserted, and OFF when removed.
- Drawback: No security control — guests may leave any spare card in the holder.
- Cost-effective solution for budget or entry-level hotels.
FD-HKCP-GP-02
FD-HKCP-PC-02

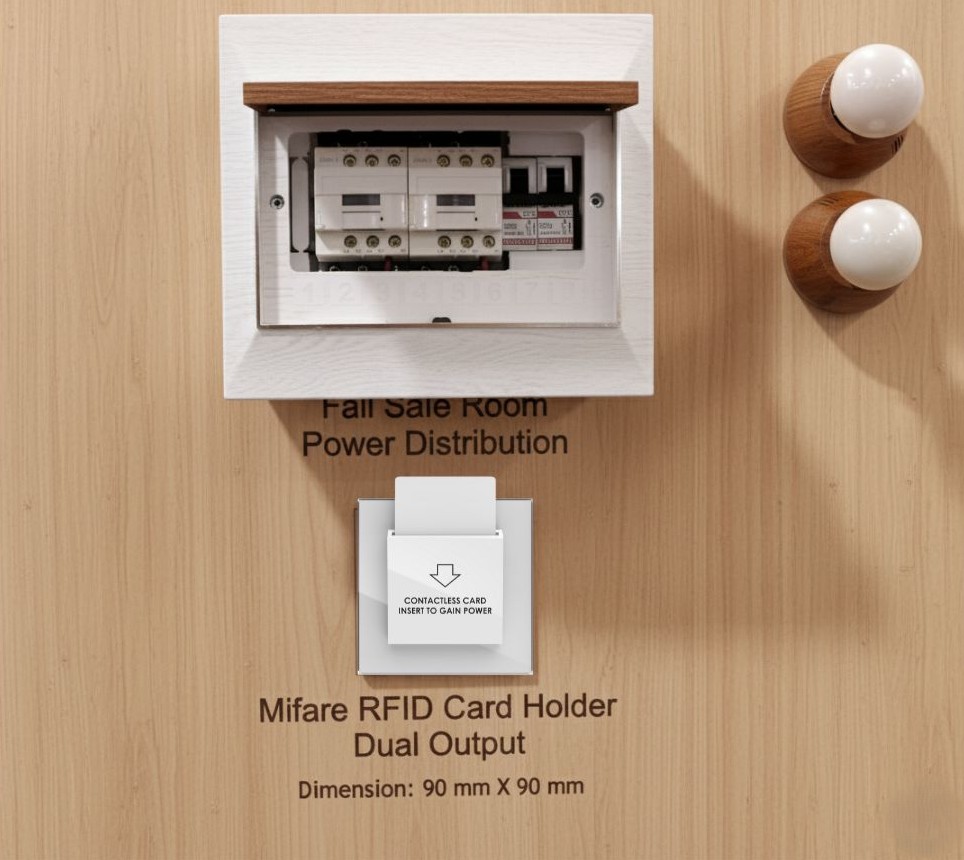

2.Mifare RFID Keycard Holder (High Frequency – 13.56 MHz)
- Works only with hotel-issued Mifare cards (13.56 MHz).
- Ensures high security and prevents misuse.
- Ideal for mid to premium hotels that use Mifare keycard access systems.
- Can be integrated with GRMS for check-in/check-out synchronization.
FD-HKCP-GP-01
FD-HKCP-PC-01
FD-HKCP+HAP-4M
3.Temic RFID Keycard Holder (Low Frequency – 125 kHz)
- Designed for Temic RFID hotel keycards (125 kHz).
- Secure and reliable, ensuring only programmed cards activate the power.
- Suitable for hotels already using Temic access control systems.
FD-HKCP-GP-03
FD-HKCP-PC-03
