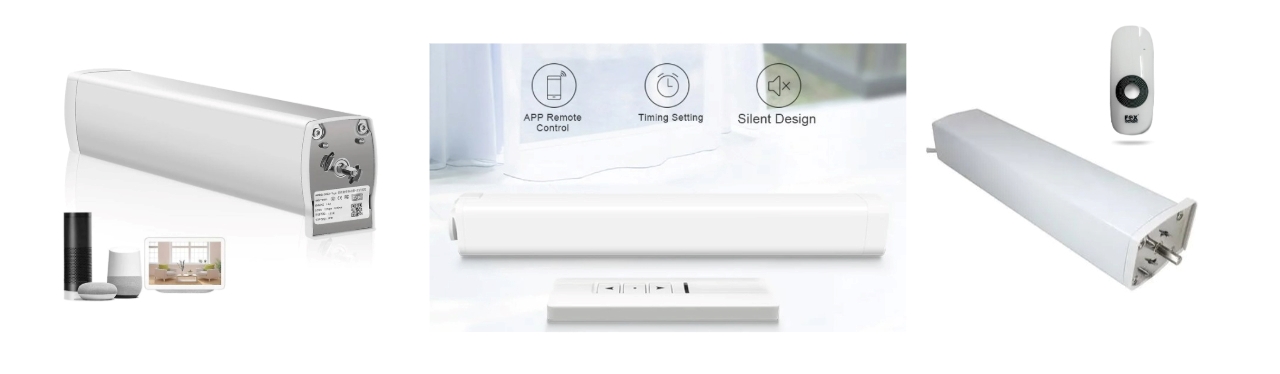

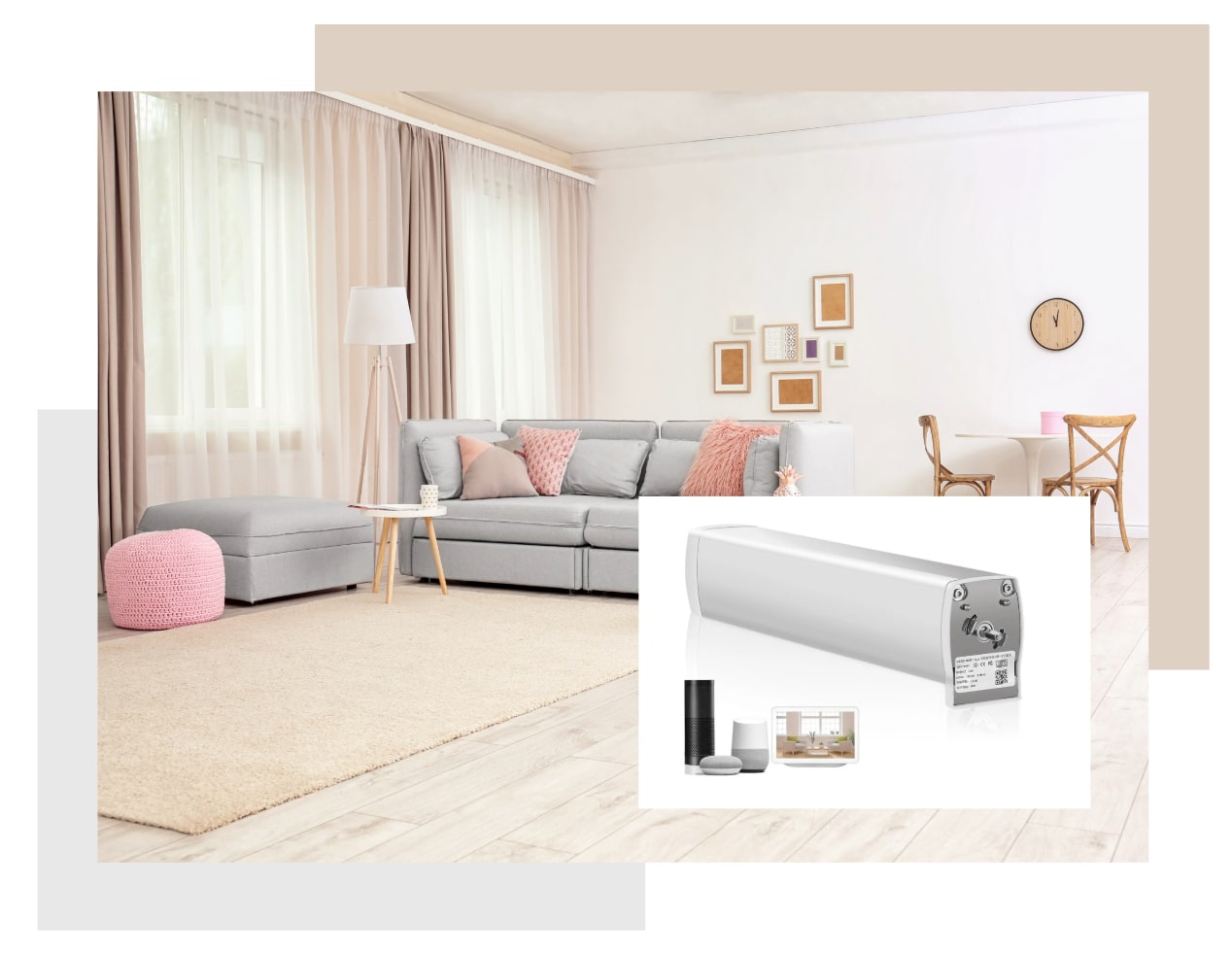

Curtain Motors

Fox Domotics curtain motors are designed to automate the opening and closing of curtains, providing convenience, security, and energy efficiency for modern homes. These motors can be integrated into smart home systems, allowing you to control your curtains remotely or through automation routines.

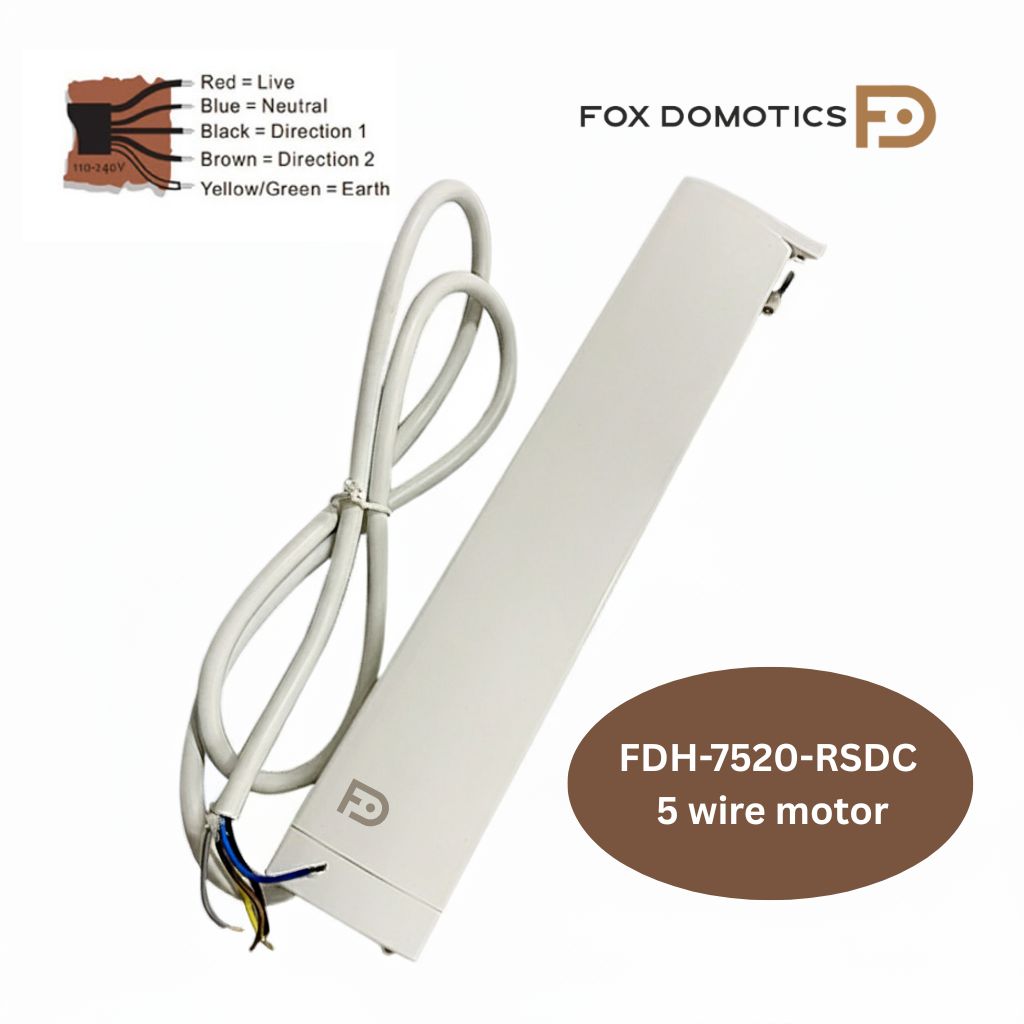

 A 5-wire curtain motor is commonly used in automated curtain systems to control the opening and closing of curtains smoothly and efficiently.

Curtain Motor

Features of a 5-Wire Curtain Motor

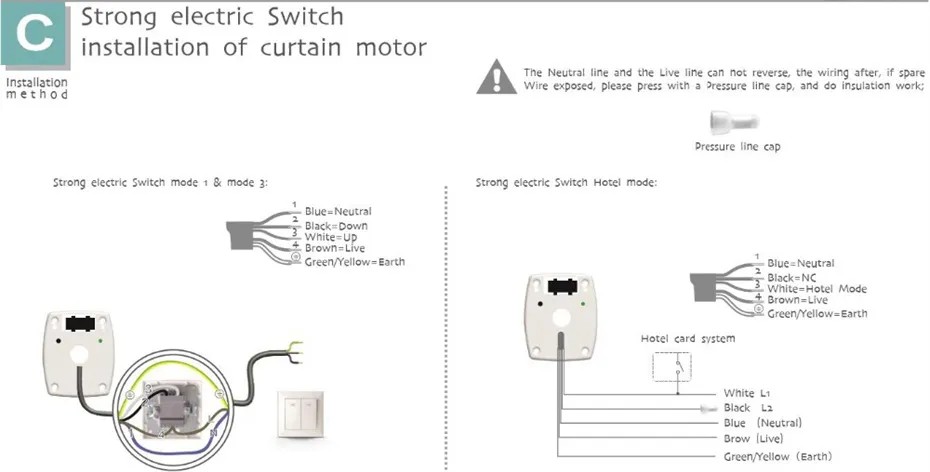

Wires and Functions

Typically, the wires include:

  1. Live (L)– Power supply.
  2. Neutral (N)– Return path for current.
  3. Up (Open)– Controls the motor to open the curtains.
  4. Down (Close)– Controls the motor to close the curtains.
  5. Ground (Earth)– Safety grounding.
  • Operation:

The motor receives commands via the up/down wires to move the curtain track accordingly.

Key Features

  • Smooth, quiet operation with durable motor design
  • Multiple control options: Compatible with wall switches, remote controls, or smart home automation systems and voice assistants (Alexa, Google Assistant, Siri)
  • Soft Touch Activation: Gently pull the curtain by hand to trigger automatic opening or closing—no force required
  • Timer and scene settings for scheduled automation
  • Sleek, modern design to blend with any interior
  •

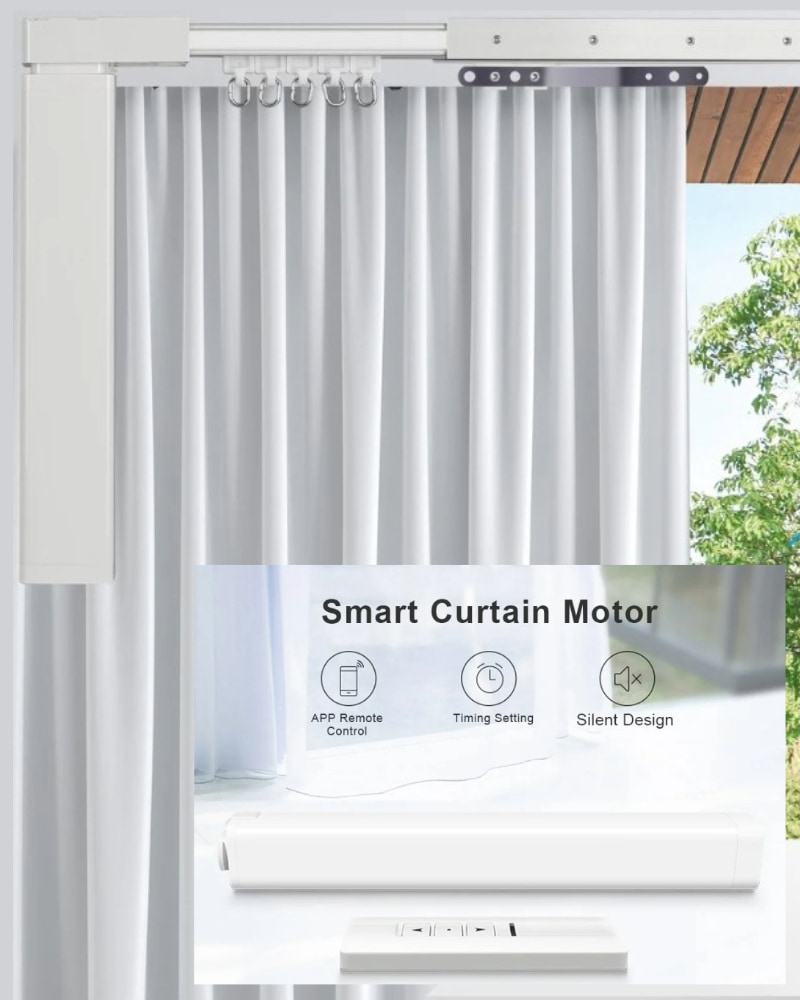

curtain-motor-installation

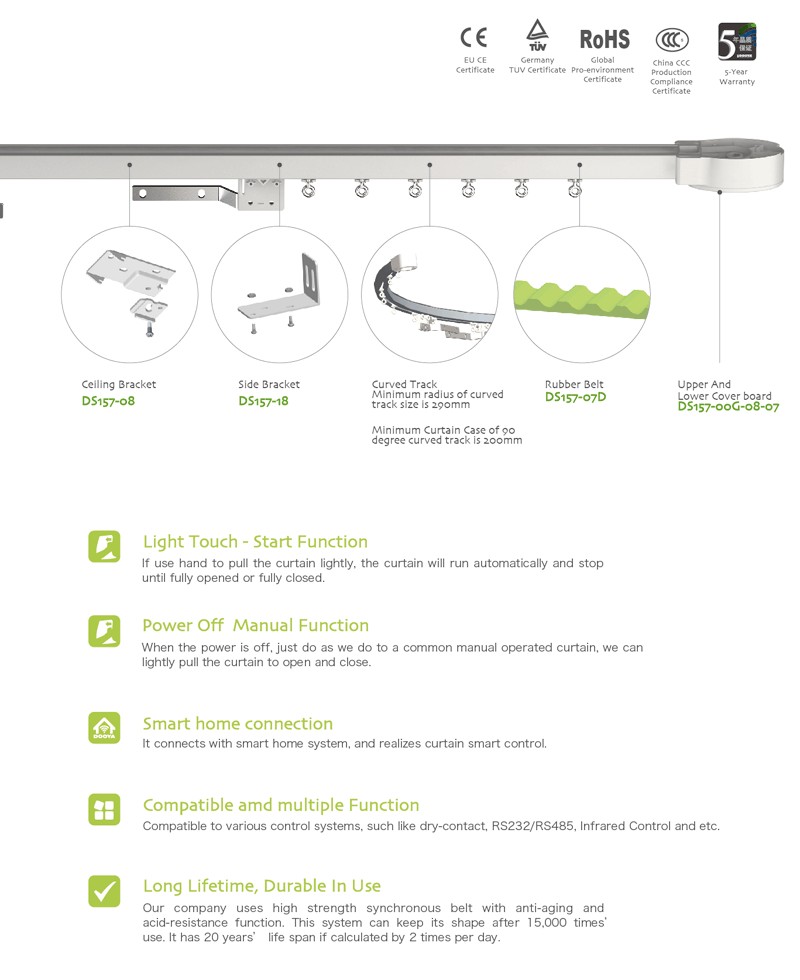

Curtain-motors-1

Product Feature

Curtain Motor

  1. Ultra-Silent Operation: DOOYA DT82TV curtain motor adopts advanced noise reduction technology, ensuring whisper-quiet operation. Enjoy a peaceful ambiance in your smart home without disturbing noises.
  2. Versatile Control Options: Control your curtains effortlessly with RS485, dry contact, or RF433 remote. Integrate seamlessly with your existing smart home system for ultimate convenience.
  3. Durable and Reliable: Crafted from high-quality materials, the DT82TV motor boasts exceptional durability and longevity. Rest assured, your curtains will operate smoothly for years to come.
  4. Wide Compatibility: Experience hassle-free installation with the DT82TV motor's universal compatibility. Suitable for various curtain types and rods, it seamlessly integrates into your home décor.
  5. Energy Efficient: Embrace eco-friendly living with DOOYA's energy-efficient curtain motor. Its optimized power consumption reduces your carbon footprint while saving you money on energy bills.

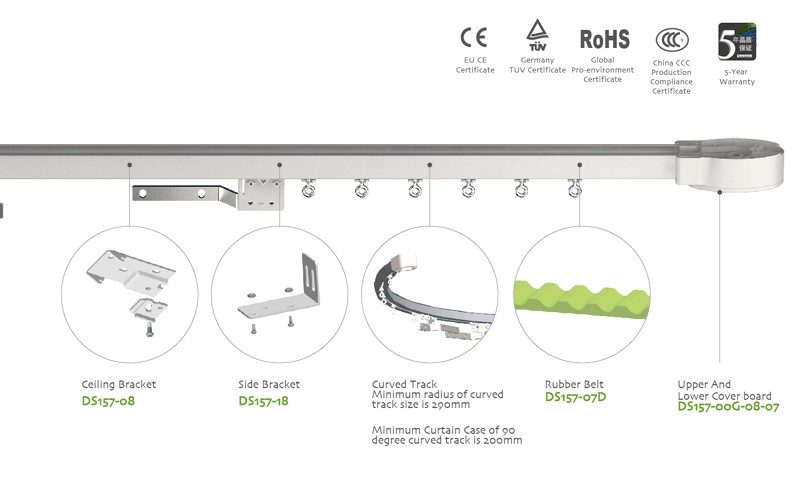

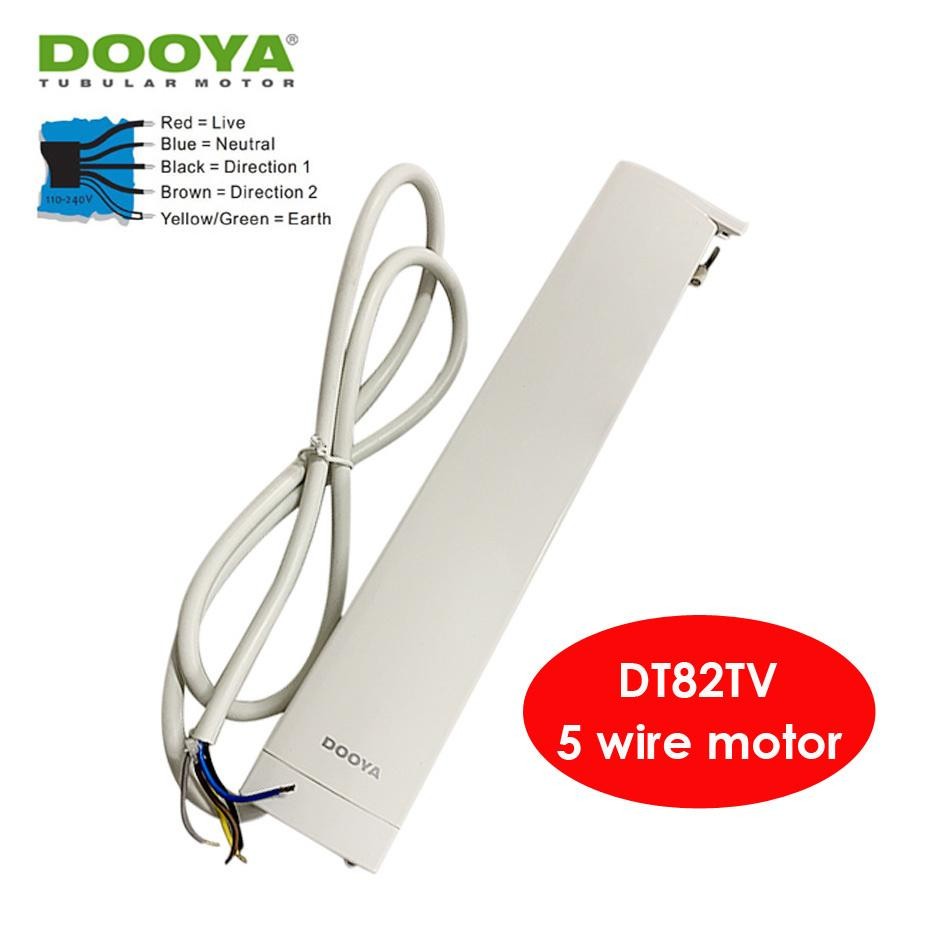

Curtain-motor-DT82TV---5 wire-motor

Product Feature

Dooya Motor

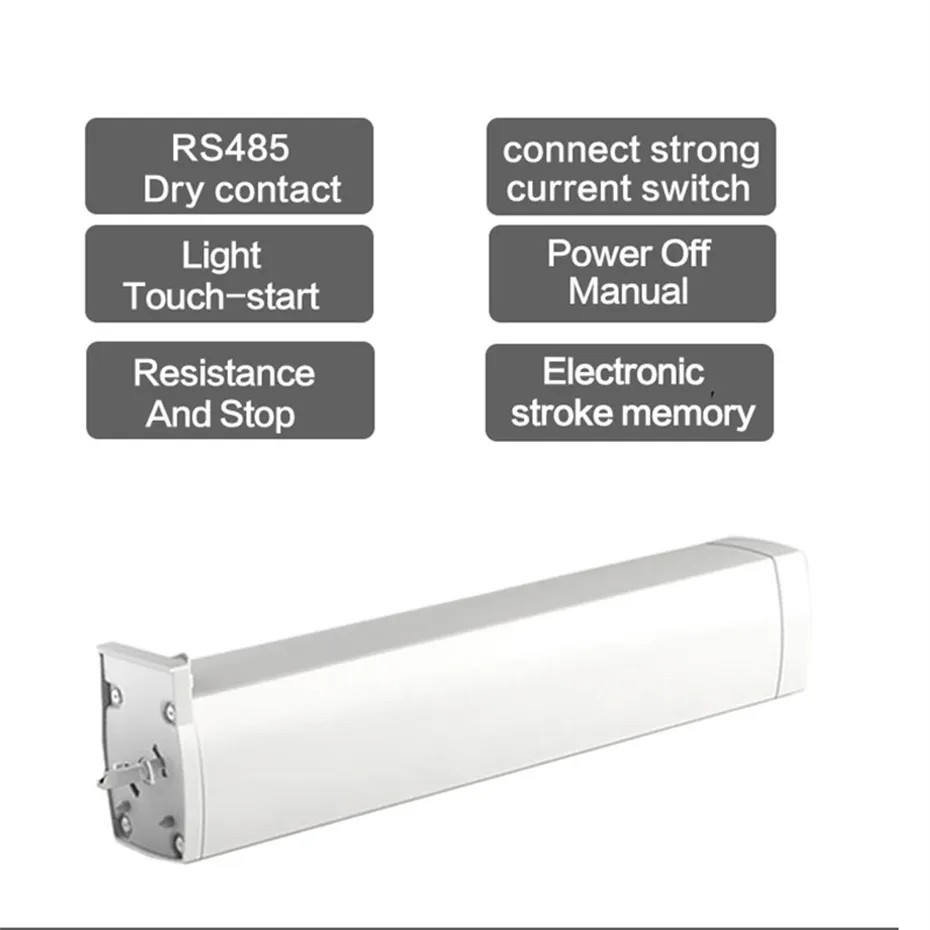

Features of motor DT82TV---5 wire motor

  1. Silent design
  2. Elegant operation funtion
  3. Electric memory limit funtion
  4. Restance and stop funtion
  5. Power on and off manual funtion
  6. External strong-current switch funtion
  7. Used for wired smart home.
  8. light-touch start funtion
  9. External dry-contactor switch funtion
  10. smarthome funtion
  11. Voltage: AC100V - 240V
  12. DT82TV has combined funtion of KT82TN and KT82TS, controlled by remote controlled and your wired controller.
Switch-installation-of-curtain-motor
Curtain-motors-features
Curtain Motor

Techincal Information

Fox Domotics Curtain Motors

curtain-motors-main

Curtain Motor Techincal Information

Model No Safety Curtain Weight Rated Power Input Open / Close Speed Rated Current Continuos Running Time Ingress Protection Max. Limit Turns Track Length Weight
FDH-45/20-R 50 (kg) 45 (kg) 20 (cm/sec) 0.34 (A) 4 min 20 (IP) ∝ (Turns) ≤ 12 (m) 1.10 (kg)
FDH-75/20-R 70 (kg) 50 (kg) 20 (cm/sec) 0.34 (A) 4 min 20 (IP) ∝ (Turns) ≤ 12 (m) 1.10 (kg)
FDH-45/20-S 50 (kg) 45 (kg) 20 (cm/sec) 0.20 (A) 4 min 20 (IP) ∝ (Turns) ≤ 12 (m) 1.10 (kg)
FDH-75/20-S 70 (kg) 50 (kg) 20 (cm/sec) 0.20 (A) 4 min 20 (IP) ∝ (Turns) ≤ 12 (m) 1.10 (kg)
Blind Motor

Controls & Accessories

Fox Domotics Curtain Motor

All Remote Switches Accessories

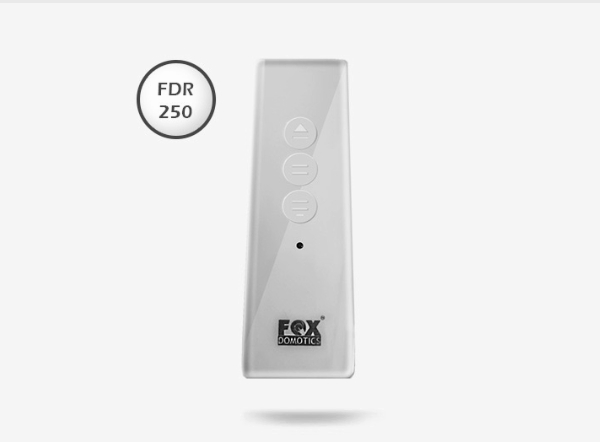

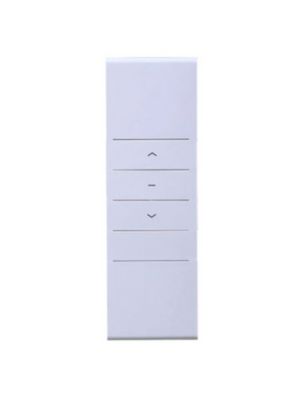

Single Chanel Remote

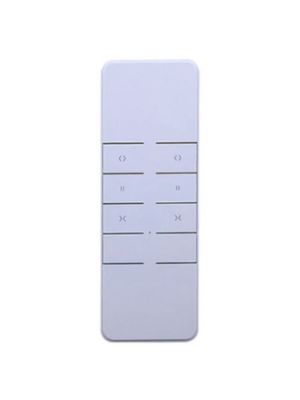

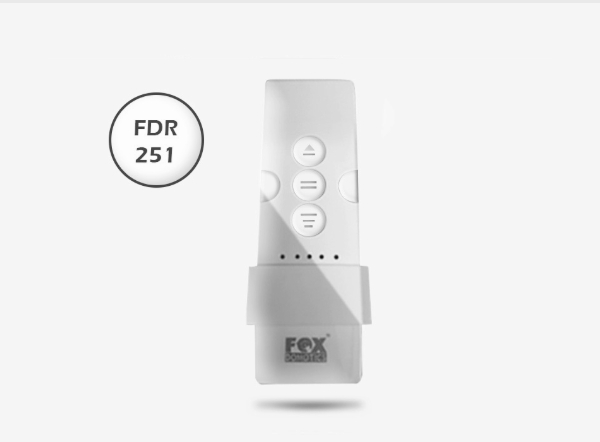

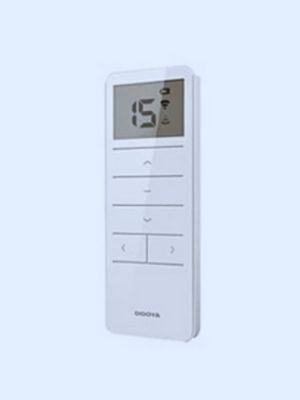

Five Chanel Remote

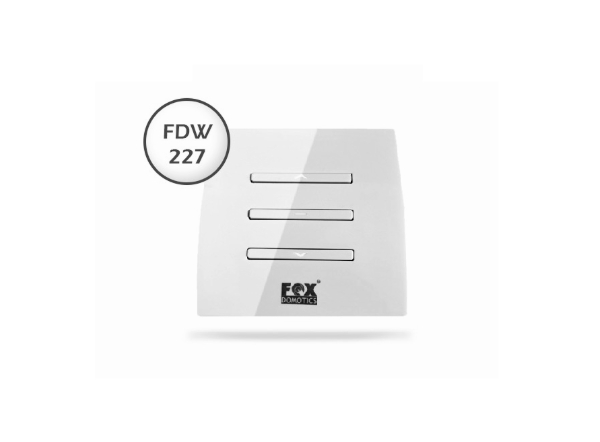

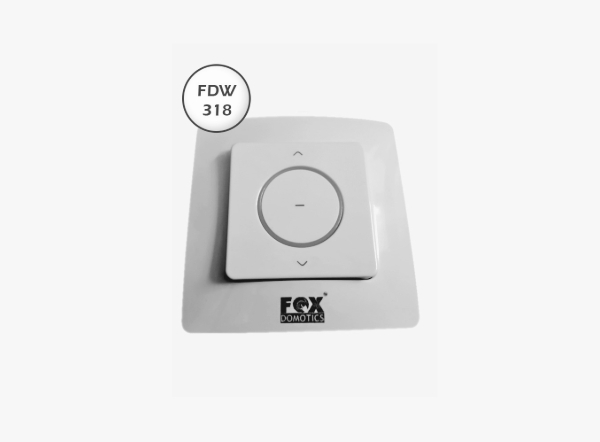

Single Channel Wall Switch

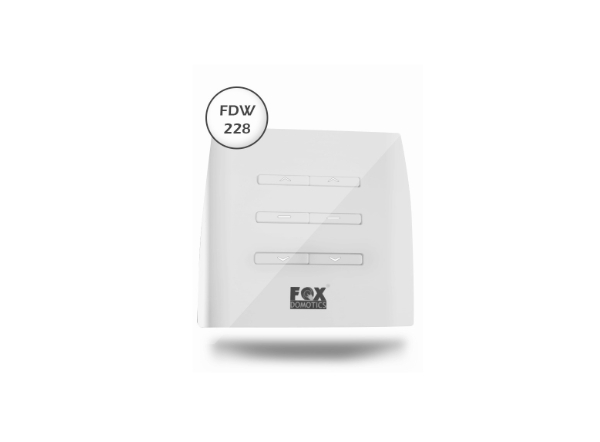

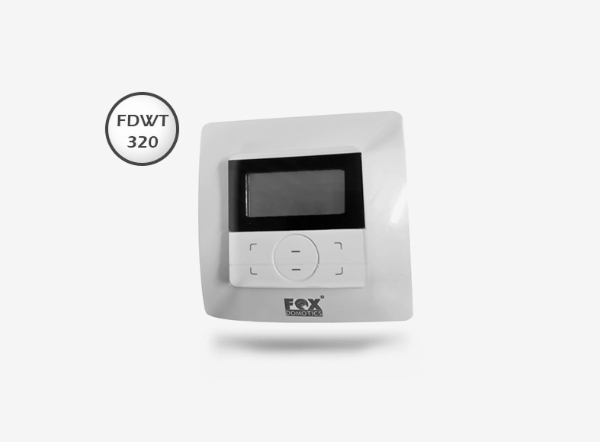

Double Channel Wall Switch
Single Channel Wall Switch
Double Channel Wall Switch

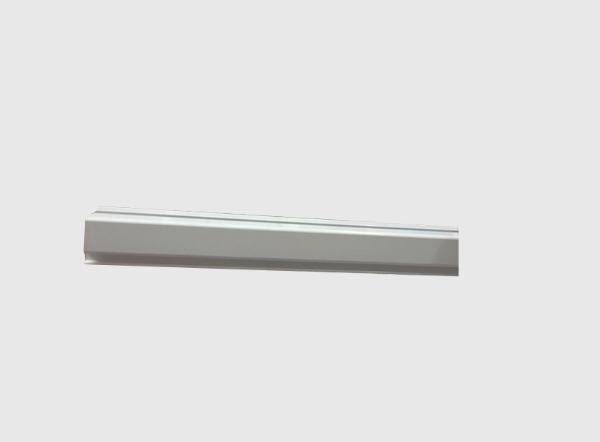

Curtain Track

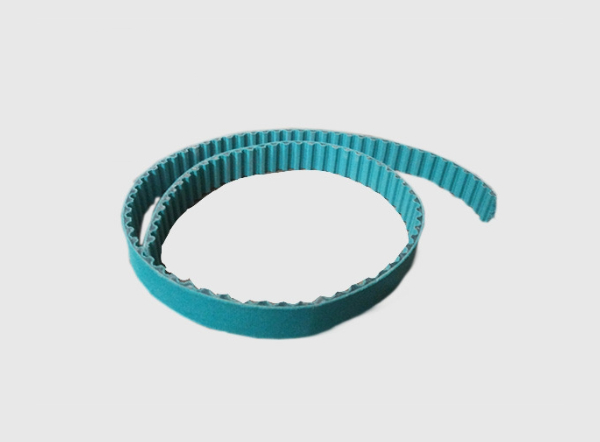

Curtain Belt

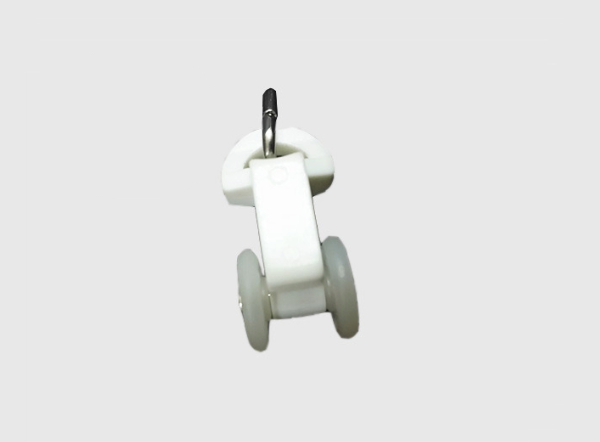

Curtain Runner

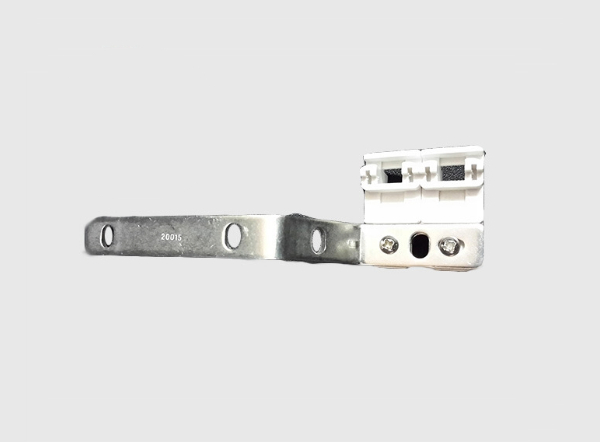

Curtain Master Carrier

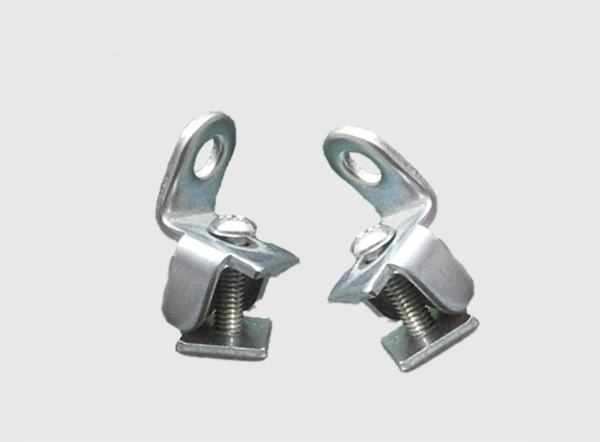

Curtain Loop

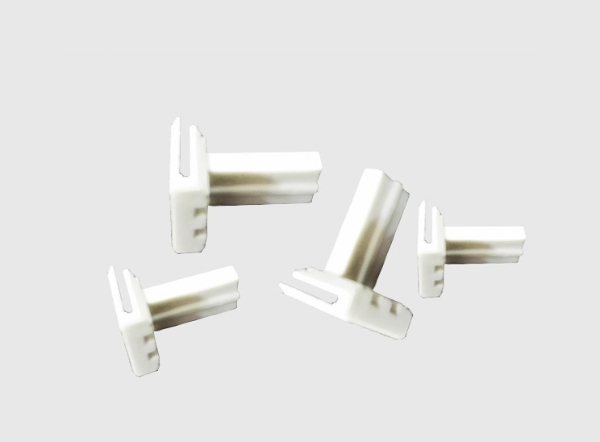

Curtain Loops

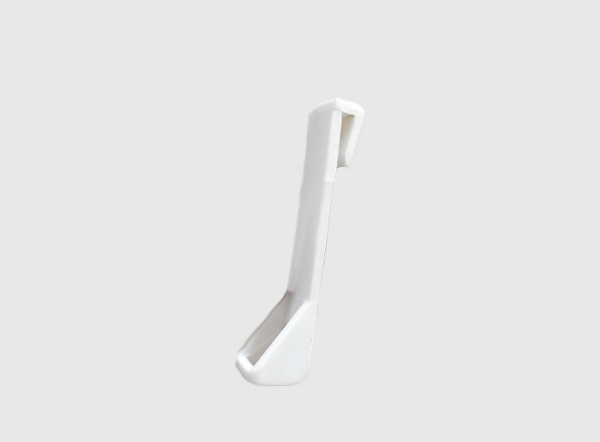

Curtain-end Hook

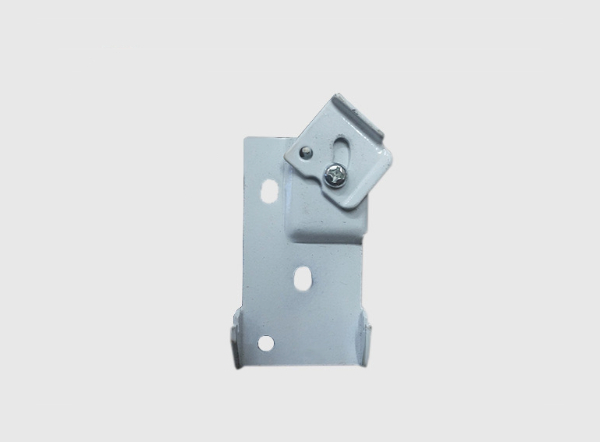

Curtain Cealing Bracket
Curtain Motor

Features of

Fox Domotics Curtain Motors

Automated Operation

  • Motorized Control:
  • Automatically open and close curtains using a motorized system, which can be controlled via remote control, smartphone app, or voice commands.
  •
  • Smooth Operation:
  • Designed for quiet and smooth operation, ensuring minimal disturbance.

Smart Integration

  • Tuya Compatibility:
  • Once connected to Fox Domotics Tuya Smart touch switches, it integrates with the Tuya smart home ecosystem, allowing for control via the Tuya Smart app on iOS and Android devices.
  •
  • Voice Control:
  • Compatible with voice assistants such as Amazon Alexa and Google Assistant, enabling hands-free control of your curtains.
  •

Scheduling and Automation

  • Timers and Schedules:
  • Set specific times for curtains to open or close automatically, based on your daily routines or preferences.
  •
  • Automation:
  • Create automation routines that integrate with other smart home devices (e.g., close curtains when a security system is activated or when a certain temperature is reached).

Ease of Installation

  • Retrofit Design:
  • Designed to retrofit existing blinds and shades, typically requiring only minor modifications.
  •
  • Mounting:
  • Includes mounting hardware and instructions for straightforward installation.
  •
curtain-motor-installation

Energy Efficiency

  • Temperature Control:
  • Adjust curtains to manage natural light and indoor temperature, potentially reducing heating and cooling costs.
  •
  • Light Management:
  • Regulate the amount of natural light entering your home to enhance comfort and reduce glare.
  •

Customizable Operation

  • Adjustable Settings:
  • Configure settings such as curtain open/close range, speed, and response to various triggers via the app or remote control.
curtain-motors-main
Curtain Motor

How to Set Up

Fox Domotics Curtain Motors

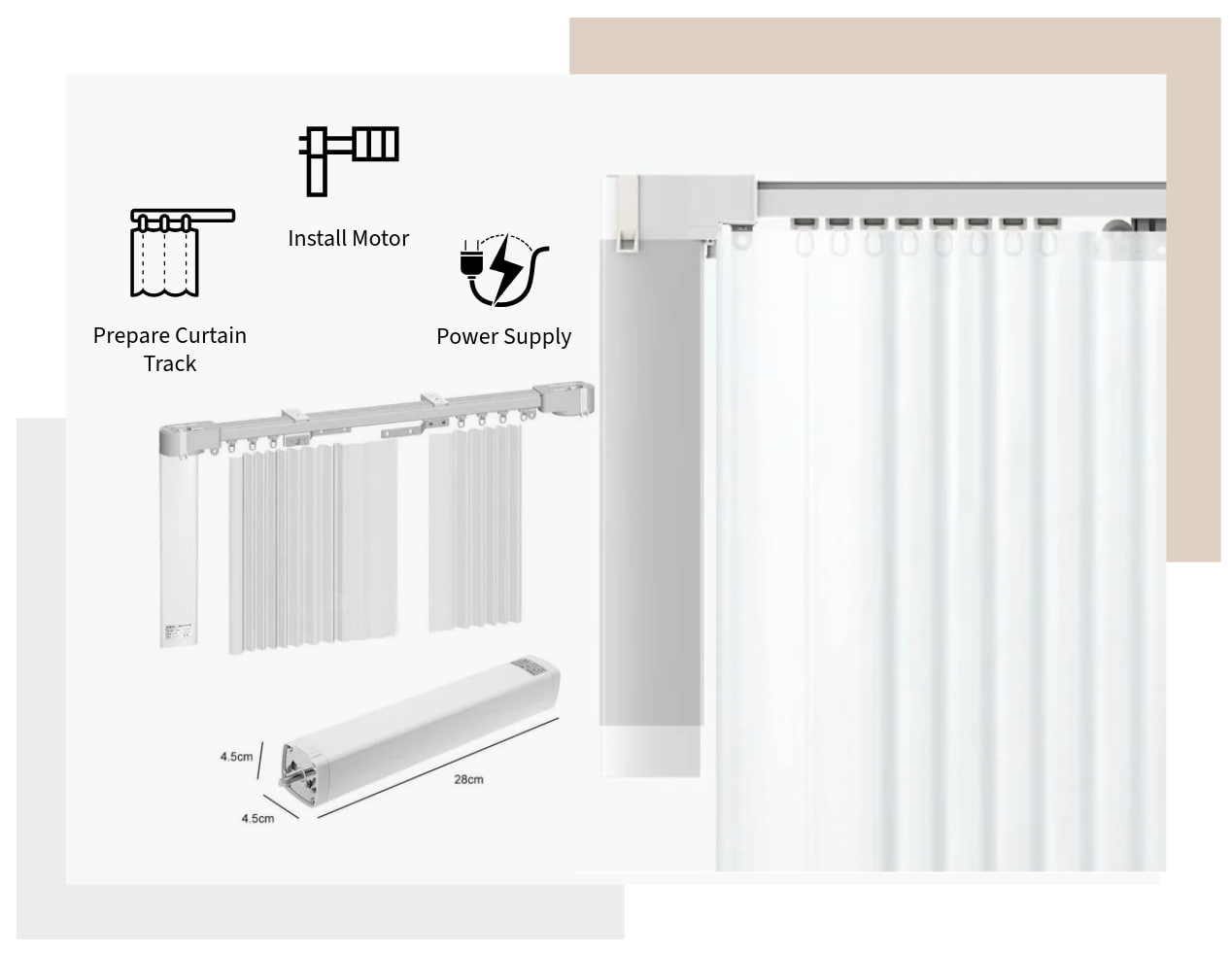

Installation

curtain-motor-installation
  • Prepare Curtain Track: Remove any existing curtain mechanism if necessary, and ensure the curtain track or rod is suitable for motor installation.
  • Install Motor: Attach the Fox Domotics curtain motor to the curtain track or rod according to the manufacturer’s instructions. This typically involves mounting the motor unit and connecting it to the existing track or rod system.
  • Power Supply: Connect the motor to a power source. Some models may be battery-operated, while others may require a wired connection.
curtain-motor-installation
curtain-motor-tuya-app

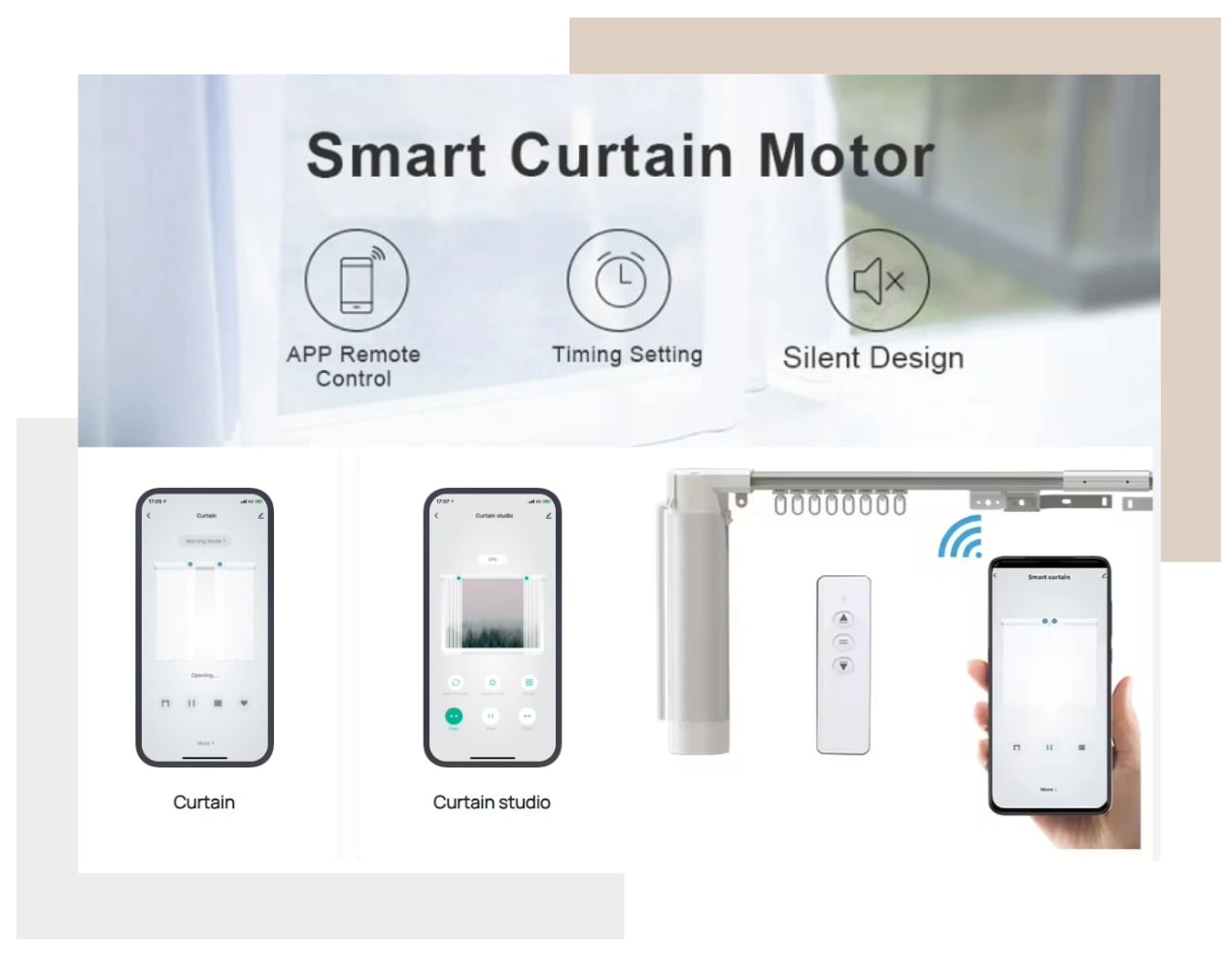

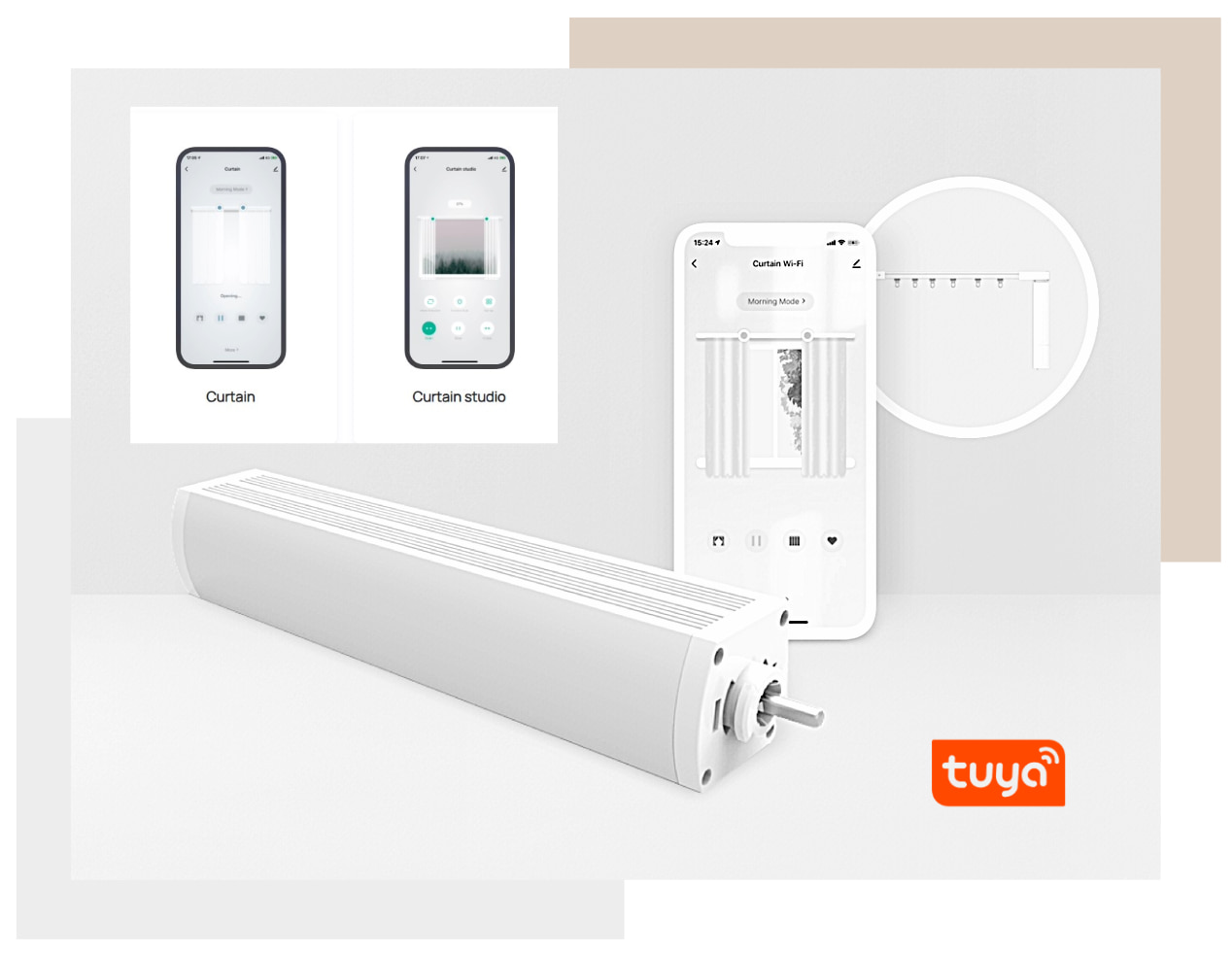

Connecting to the Tuya Smart App

curtain-motor-tuya-app
  • Download the App: Install the Tuya Smart app from the App Store or Google Play.
  • Create/Log In: Sign up or log into your Tuya Smart account.
  • Follow the app’s instructions to add the curtain motor to your smart home network. This generally involves putting the motor into pairing mode and connecting it to your Wi-Fi network.

Configuration

  • Set Up Operation: Use the app or remote control to configure the motor’s operation settings, including curtain open/close positions, speed, and any preset positions.
  • Create Schedules: Set schedules for the curtains to open or close at specific times or in response to certain conditions.

Integration and Testing

  • Voice Assistants: If using voice control, link your Tuya account with Alexa or Google Assistant and configure voice commands for operating the curtains.
  • Test Functionality: Ensure that the curtains operate correctly according to your settings and schedules. Check for proper alignment and functionality.
