Automation Motors – Tubular Motors for blinds

tuular-Motor-R-Radio-Type

Tubular Motor for Blinds

Blinds are an excellent substitute for traditional curtains, offering not only privacy but also effective protection from harmful UV rays, excessive heat, glare, dust, and dirt. They enhance indoor comfort while maintaining a modern, streamlined look suitable for residential, commercial, and industrial spaces.

Today, blinds have evolved beyond manual operation. Motorized blinds, powered by advanced automation technology, deliver effortless control and enhanced convenience.



Fox Domotics presents premium Blind Motors — designed to automate the operation of window blinds and shades, enhancing convenience, security, and energy efficiency in a smart home environment.

Built for smooth performance and long-lasting reliability, our blind motors combine cutting-edge design with user-friendly technology, ensuring a seamless shading solution for any environment.



Fox Domotics Tubular Motor Series

Fox Domotics offers a versatile range of tubular motors designed for blinds, shades, and curtain automation. Available in different models to suit your application and noise-level requirements:

  • R: Radio: Integrated radio receiver for wireless remote control
  • S: Standard- Basic wired control, reliable and cost-effective.
  • QR: Quite Radio- Low-noise motor with built-in radio receiver for smooth, silent operation
  • QS: Quite Standard-Low-noise motor with standard wired control.
  • Mechanical Limit + Built-in Receiver + Quite Motor + Dot-Move & Light Adjust Functions

Model No

Rated Torque

Speed

Diameter

Voltage

Frequency

Current

Continuous Running Time

IP Rating

Max Limit Turns

FDT-45S

10 Nm

18 RPM

45 mm

230 V

50 Hz

0.64 A

4 min

IP44

45 turn

FDT-45R

10 Nm

18 RPM

45 mm

230 V

50 Hz

0.64 A

4 min

IP44

45 turn

FDT-35S

6 Nm

28 RPM

35 mm

230 V

50 Hz

0.54 A

4 min

IP44

30 turn

FDT-35R

6 Nm

28 RPM

35 mm

230 V

50 Hz

0.54 A

4 min

IP44

30 turn

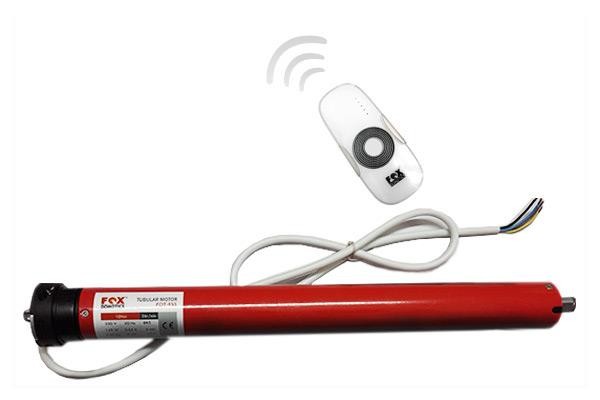

Tubular Motor -35MM

blind-tubular-motor-35mm-radio-type

Technical Information



FDT-35R

FDT-35S

Technical Date

Rated Torque

6

6

Nm

Out Put Speed

26

26

(rpm)

Tube Diameter

35

35

(mm)

Rated Voltage

230

230

(V)

Frequency

50

50

(Hz)

Rated Power

121

121

(W)

Rated Current

0.53A

0.53A

(A)

Continuous Running Time

4

4

(min)

Protection Degree

IP44

IP44

IP

Max Limit Turns

30

30

(turn)

L1 / L2

557/56

457/44

(mm)

Tubular Motor -45MM

Technical Information



FDT-45S

FDT-45QS

Technical Date

Rated Torque

10

10

10Nm

Out Put Speed

28rpm

28rpm

(rpm)

Tube Diameter

45

45

(mm)

Rated Voltage

230

230

(V)

Frequency

50

50

(Hz)

Rated Power

145

145

(W)

Rated Current

0.64

0.64

(A)

Continuous Running Time

4

4

(min)

Protection Degree

IP44

IP44

IP

Max Limit Turns

45

45

(turn)

L1 / L2

657/63

657/63

(mm)

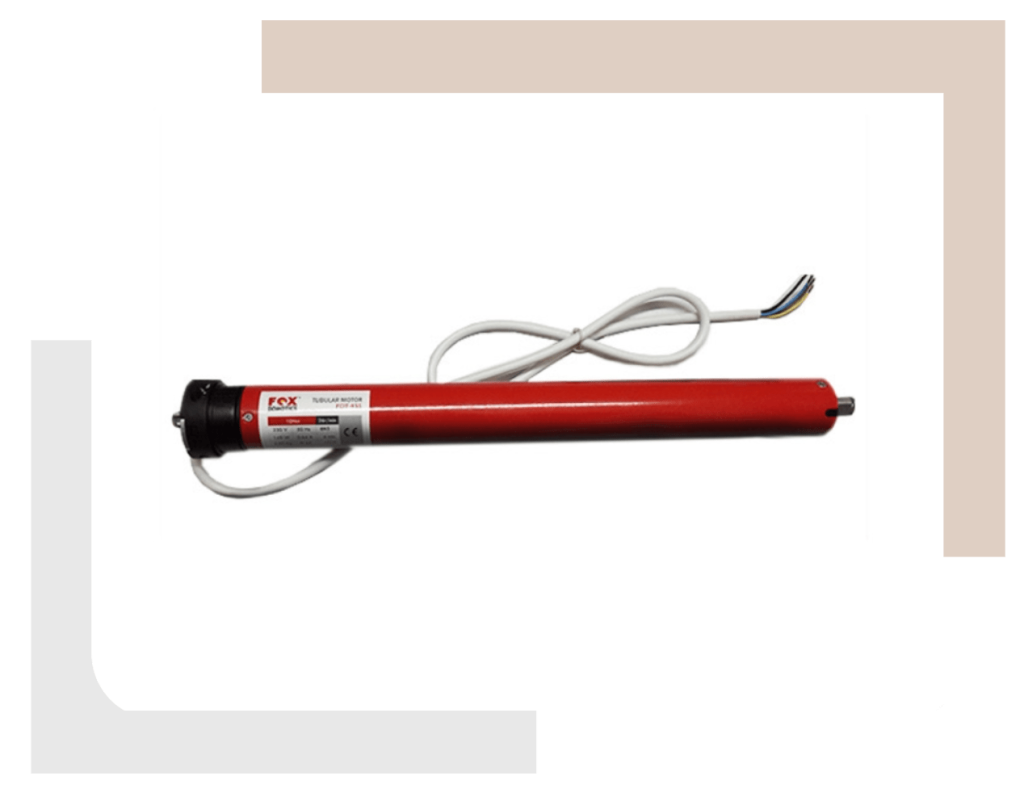

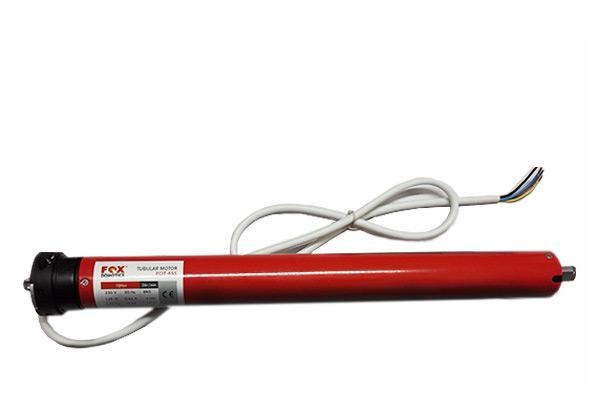

blind-Tubular-Motor -45MM-Standard-type

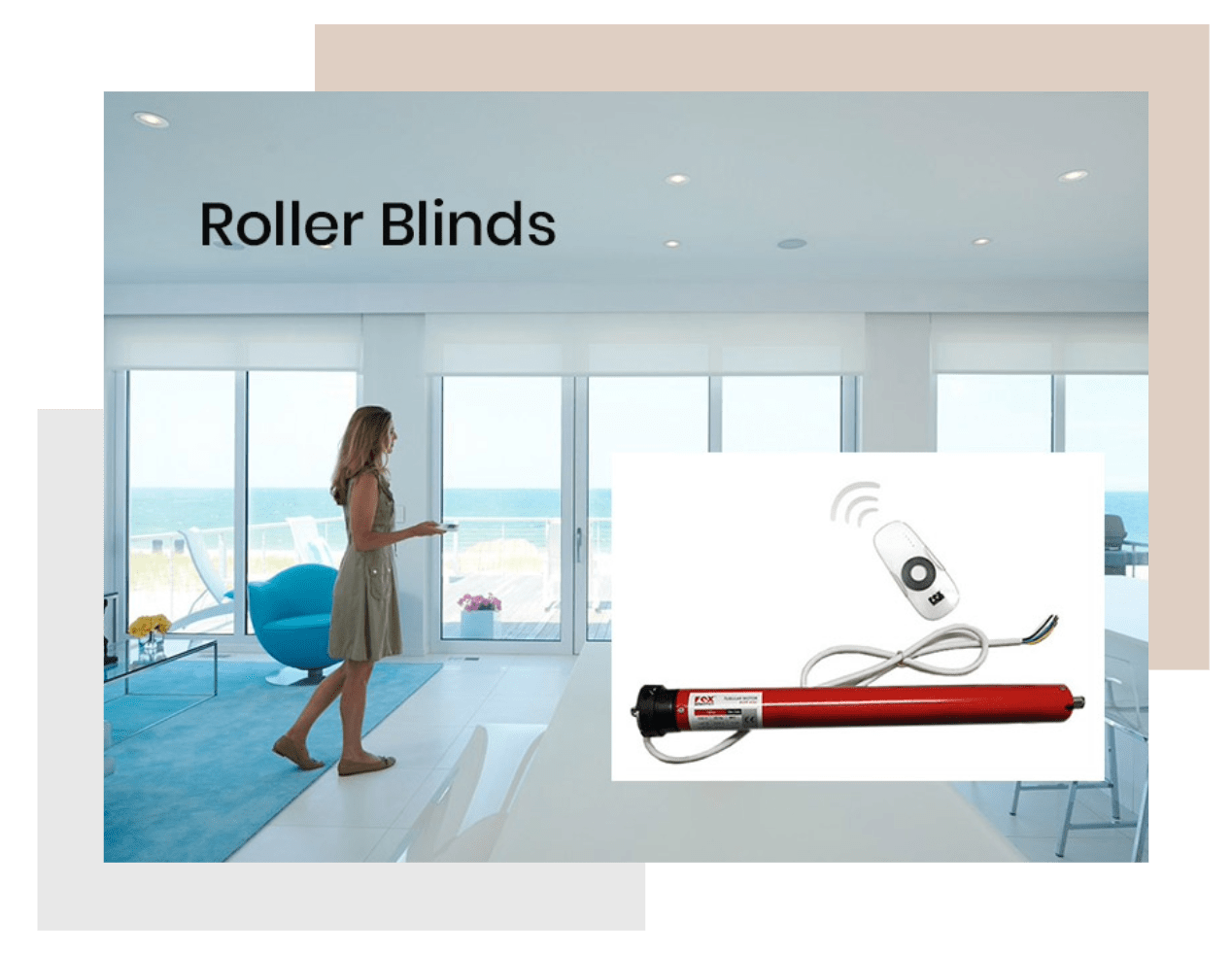

tuular-Motor-R-Radio-Type

Tubular Motor for Blinds

Fox Domotics blind motors are designed to automate the operation of window blinds and shades, enhancing convenience, security, and energy efficiency in a smart home environment. These motors can be integrated with various home automation systems, allowing you to control your blinds remotely or set them to operate on a schedule.

  • R: Radio
  • S: Standard
  • QR: Quite Radio
  • QS: Quite Standard
Blind Motor

Features of

Fox Domotics Blind Motors

Motorized Operation

  • Automated Control: Operate your blinds or shades automatically, either via a remote control, smartphone app, or integrated smart home system.
  • Smooth Operation: Designed for smooth and quiet operation, ensuring a seamless experience when adjusting your blinds.

Smart Integration

  • Tuya Compatibility: Once connected to Fox Domotics Tuya Smart touch switches, it integrates with the Tuya smart home ecosystem, allowing for control via the Tuya Smart app on iOS and Android devices.
  • Voice Control: Compatible with voice assistants like Amazon Alexa and Google Assistant for hands-free operation.

Scheduling and Automation

  • Timers and Schedules: Set schedules to automatically open or close blinds at specific times of the day or in response to environmental conditions.
  • Automation: Create automation routines that integrate with other smart home devices (e.g., closing blinds when the thermostat is adjusted).

Energy Efficiency

  • Temperature Control: Helps manage indoor temperatures by adjusting blinds based on sunlight and outside temperature, potentially reducing heating and cooling costs.
  • Light Control: Regulate natural light entering your home, enhancing comfort and reducing glare.

Ease of Installation

  • Retrofit Design: Designed to retrofit existing blinds and shades, typically requiring only minor modifications.
  • Mounting: Includes mounting hardware and instructions for easy installation.

Customizable Operation

  • Adjustable Settings: Configure settings such as the range of motion, speed, and response to various triggers through the app or remote control.

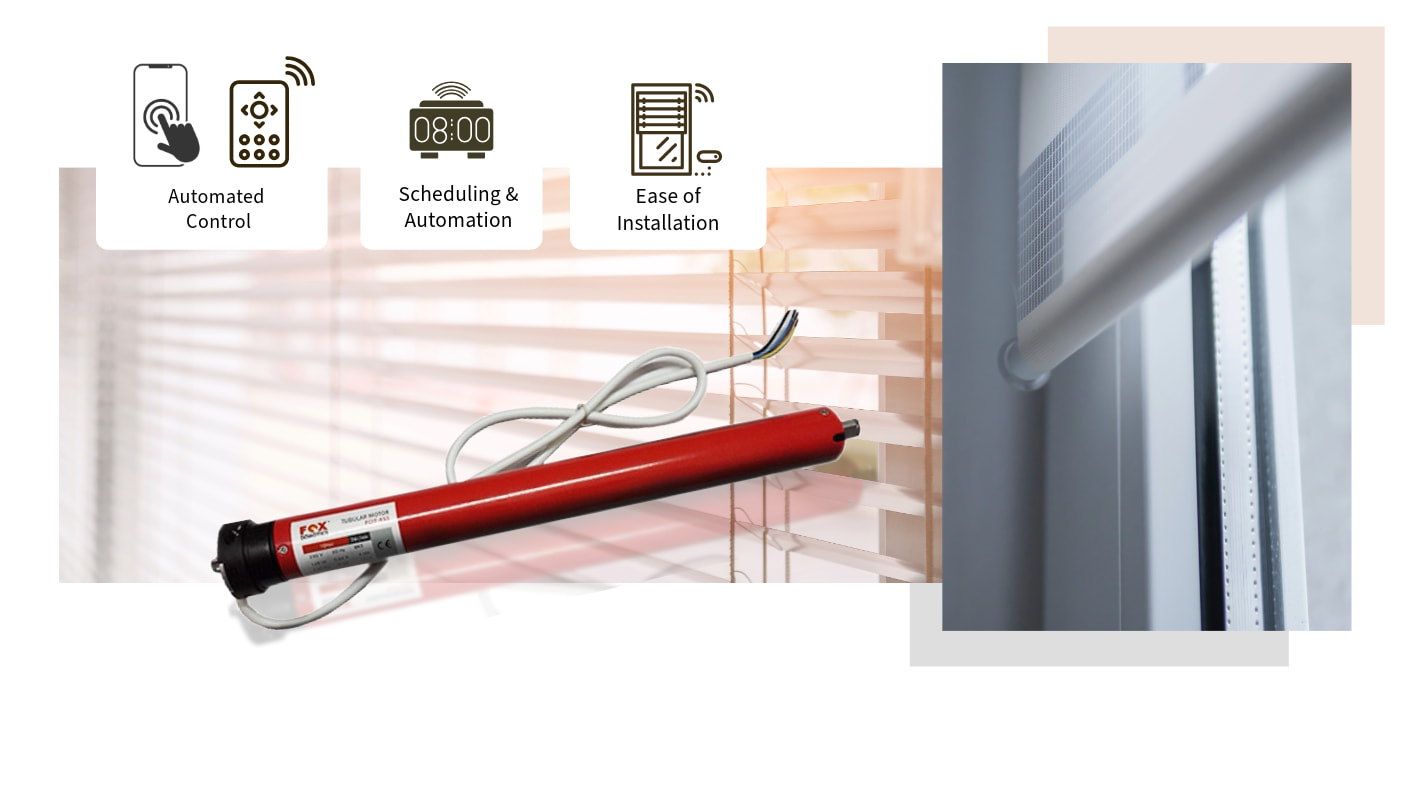

Tubular-Motor-FoxDomotics
Blind Motor

How to Set Up

Fox Domotics Blind Motors

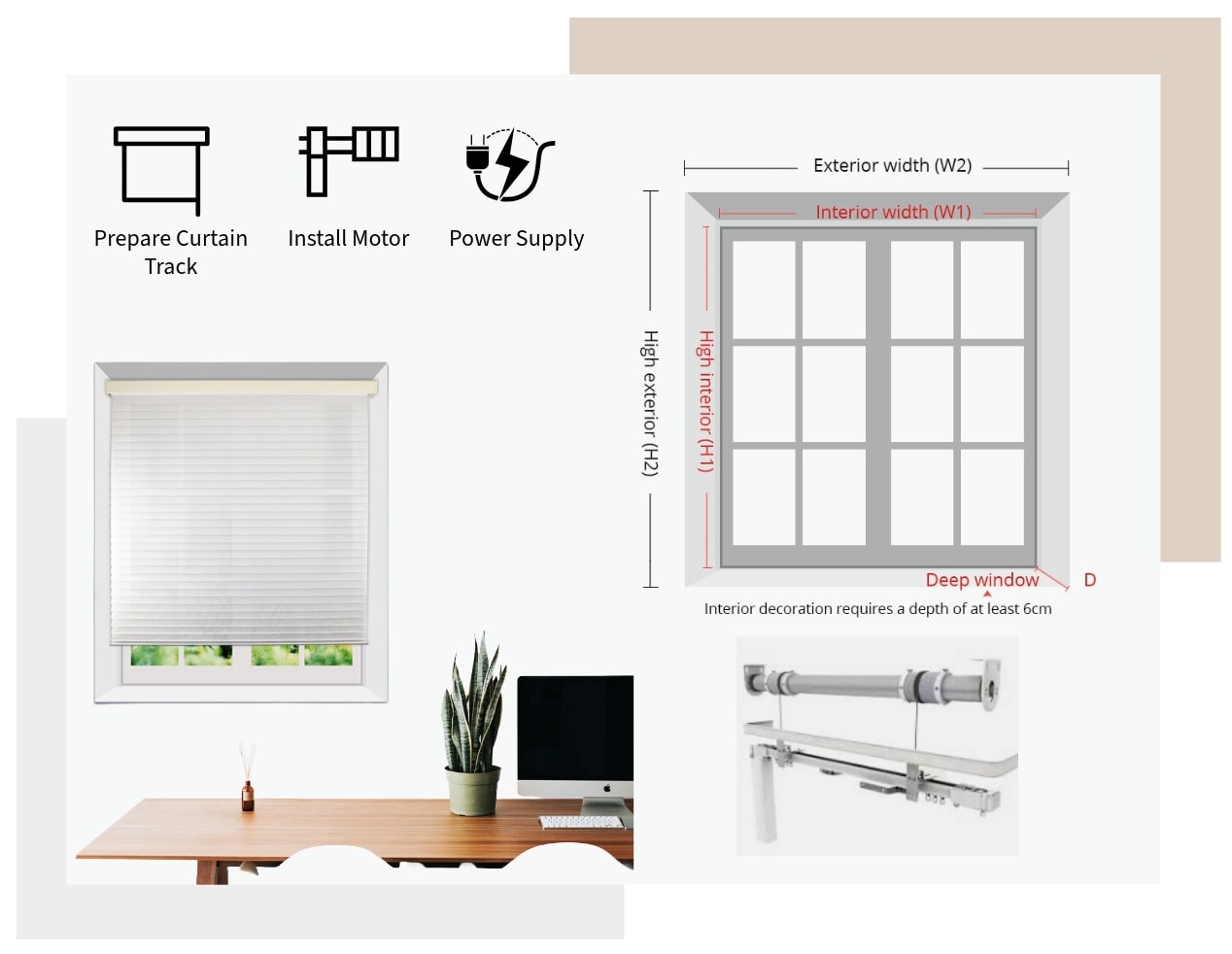

Installation

  • Prepare Blinds: Remove the existing mechanism from your blinds or shades if necessary.
  • Install Motor: Attach the Fox Domotics motor to your blinds or shades according to the manufacturer’s instructions. This usually involves connecting the motor to the blinds’ lift mechanism and securing it in place.
  • Connect to controller: connect motor to Tuya touch switch controller for smart controlling of blind.
  • Power Supply: Connect the motor to a suitable power source if required (some models may be battery-operated).

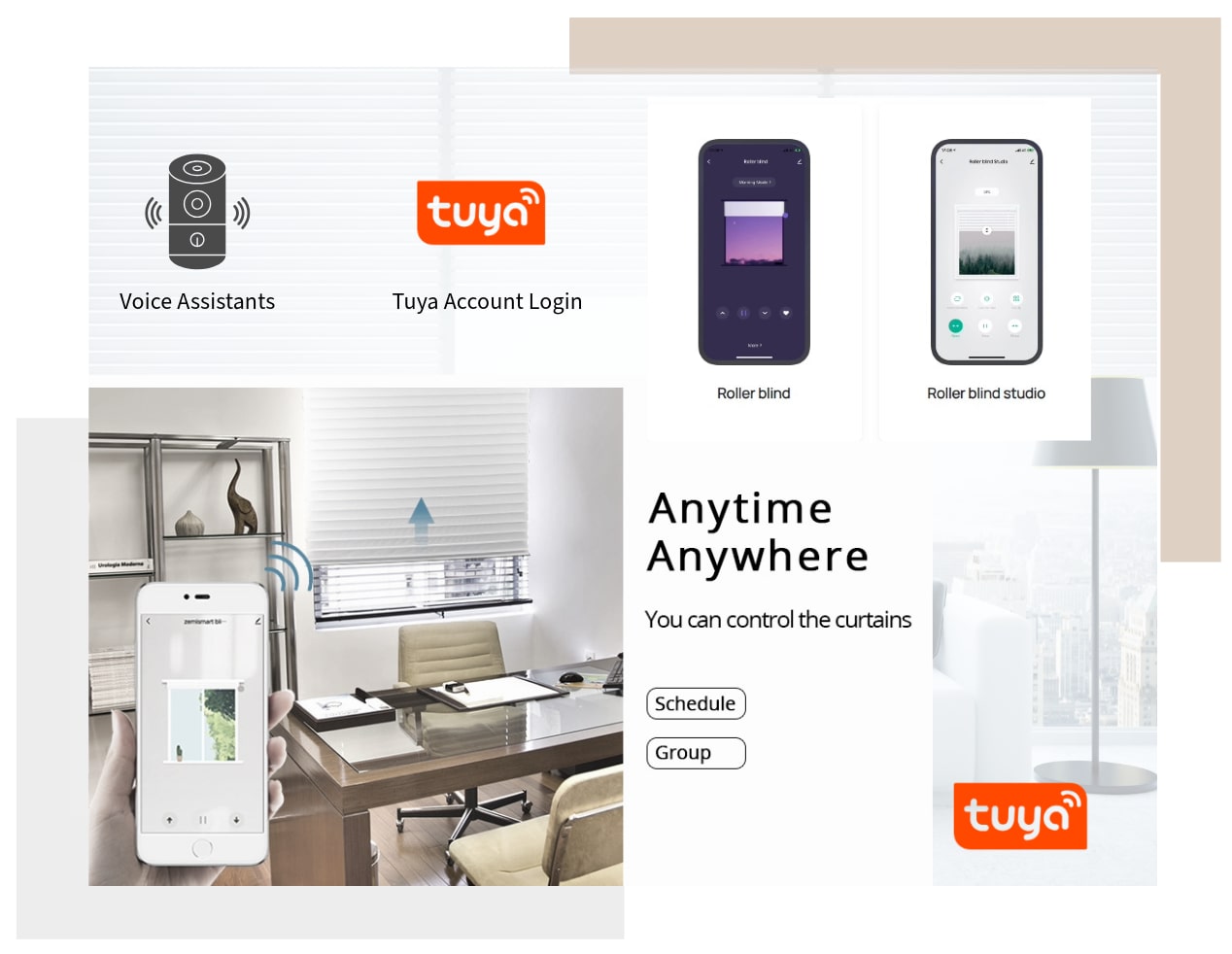

Connecting to the Tuya Smart App

  • Download the App: Install the Tuya Smart app from the App Store or Google Play.
  • Create/Log In: Sign up or log into your Tuya Smart account.
  • Add Device: Follow the app’s instructions to add the blind motor to your smart home network. This typically involves putting the motor into pairing mode and connecting it to your Wi-Fi network.
icon-tubular-motor

Configuration

  • Set Up Operation: Use the app or remote control to configure the motor’s operation settings, including opening and closing ranges, speed, and any preset positions.
  • Create Schedules: Set up schedules for the blinds to open or close at specific times or based on triggers from other smart devices.

Integration and Testing

  • Voice Assistants: If using voice control, link your Tuya account with Alexa or Google Assistant and configure voice commands for operating the blinds.
  • Test Functionality: Ensure that the blinds operate smoothly according to the settings and schedules you’ve configured. Check for proper alignment and functionality.

Tubular Motor Techincal Information

Model No Rated Torque Speed Diameter Voltage Frequency Current Continuous Running Time IP Rating Max Limit Turns
FDT-45S 10 Nm 18 RPM 45 mm 230 V 50 Hz 0.64 A 4 min IP44 45 turn
FDT-45R 10 Nm 18 RPM 45 mm 230 V 50 Hz 0.64 A 4 min IP44 45 turn
FDT-35S 6 Nm 28 RPM 35 mm 230 V 50 Hz 0.54 A 4 min IP44 30 turn
FDT-35R 6 Nm 28 RPM 35 mm 230 V 50 Hz 0.54 A 4 min IP44 30 turn
Blind Motor

Controls & Accessories

Fox Domotics Blind Motor

All Remote Switches Accessories
Single Chanel Remote
Five Chanel Remote
Single Channel Wall Switch
Double Channel Wall Switch
Single Channel Wall Switch
Double Channel Wall Switch

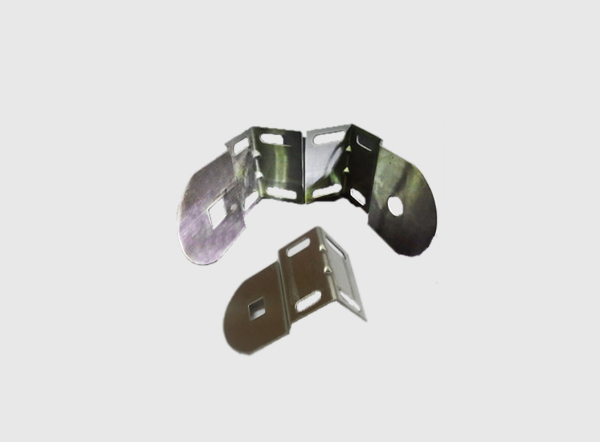

Wall Bracket Steel Round and Square

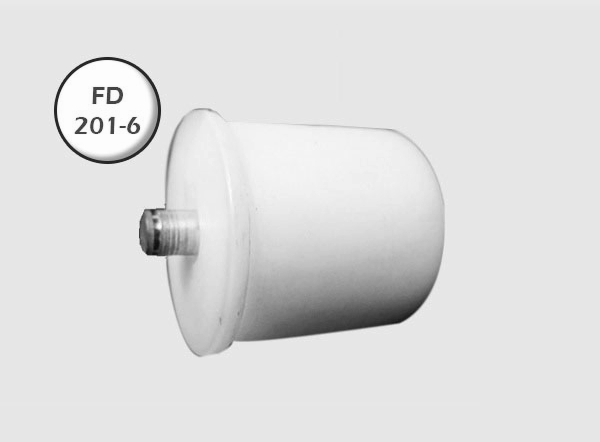

Ideler 50 mm

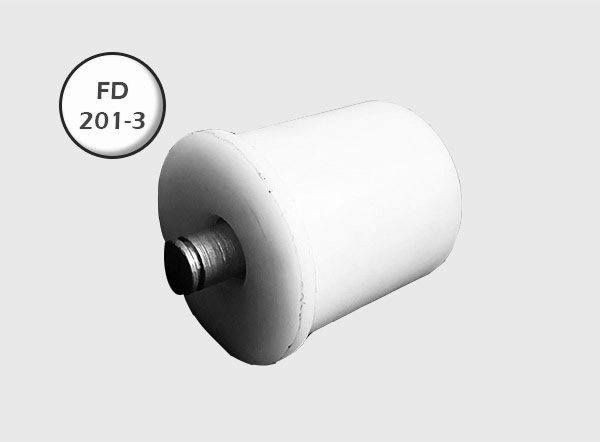

Ideler 45 mm
