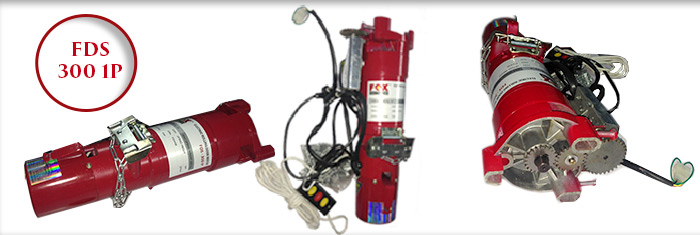

Model No: FDS-300Kg-1P

Product Certificate

Single Phase Ac Motor + Stable Quality + Low Noise Small Vibration + Manual Limit Switch + Heavy Duty Motor
  • Supply manual button and security lock, and can match with remote control (long distance receiver, and easy operation).
  • Limit switch unit enables precise adjustment of shutter in both up and down position, and safety.
  • In case of absence of power, a release chain can be operated door manually.
  • Stable operation, low noise, small vibration.
Rolling Shutter Motor
  • Single phase, Heavy duty Side Mount Shutter Motor
  • Double slat thickness is 0.8 mm-1.5mm, maximum production height can reach 9-14 m,. The scale of wind force can reach to 11.
  • Surface Processing Treatment: electostatic powder coating, corrosion resistant, scratch resistance, easy to clean, long color durability. Surface paint processing, durable weather-resistant and sunlight, rain, it can rebound and recovery after a minor crash.
  • A various installation options, including internal, external, and middle installation, the demand to space is not hight. It'll not ccupy interior space of garage doors which is easy to install, fast construct and save project time which has beautiful appearance.
  • The security device: can added install infrared system and wireless remote control system device.
  • Motorised roller door is driven by AC tubular motor or external motor, 220V or 120V. It can save electricity which is security, quiet, and with a thermal protection device. It can match with hand-crank or clutch that can be normally open in case of power off.

Model No.

  • Power Type
  • Rated Power
  • Advancing Force(kg.f)
  • Out Put Tourque (N.m)
  • Out Put Speed (r/min)
  • Maximum Raising Height(m)
  • Rated Operation Time
  • Diameter of Shutter (mm)

FDS-300kg-1P

  • Single Phase
  • 200 W
  • 300 Kg.f
  • 200 N.m
  • 4 r/min
  • 6 m
  • 5 min
  • 220 mm
